In modern industrial finishing, choosing the right spray gun technology is critical for achieving high-quality coatings, optimizing production efficiency, and controlling costs. Two primary contenders dominate the market: automatic electrostatic spray guns and manual spray guns. Each has distinct advantages and limitations depending on the application, production volume, and desired finish quality. This article explores the differences between these technologies, their working principles, benefits, challenges, and practical considerations to help you decide which is better suited for your production line.
Understanding Spray Gun Technologies
What Is a Manual Spray Gun?
Manual spray guns are handheld devices operated by skilled workers who control the spray pattern, distance, and speed. These guns typically use compressed air or high-pressure fluid to atomize paint or coating materials and apply them to surfaces. Manual spray guns include conventional air spray, HVLP (High Volume Low Pressure), and airless types.
What Is an Automatic Electrostatic Spray Gun?
Automatic electrostatic spray guns are integrated into robotic or automated systems and operate without direct human intervention. They use electrostatic charging to impart an electrical charge to the paint particles, which are then attracted to the grounded workpiece. This method improves paint transfer efficiency and coverage uniformity. These guns are programmed to perform precise, repeatable spray patterns at high speeds, ideal for high-volume production lines.
Key Differences Between Automatic Electrostatic and Manual Spray Guns
| Feature | Manual Spray Gun | Automatic Electrostatic Spray Gun |
| Operation | Handheld, operator-controlled | Automated, robot-controlled |
| Finish Quality | Good, depends on operator skill | Excellent, highly consistent finish |
| Transfer Efficiency | Lower, with more overspray and waste | Up to 95% transfer efficiency, less waste |
| Speed and Throughput | Limited by human speed and fatigue | High-speed, continuous operation |
| Cost | Lower initial investment | Higher initial cost, but faster ROI |
| Material Waste | Higher due to overspray | Reduced, saving paint and lowering VOCs |
| Safety | Operator exposed to fumes and solvents | Operators removed from hazardous environments |
| Application Flexibility | Suitable for varied and small batch jobs | Best for large, repetitive production runs |
How Do Automatic Electrostatic Spray Guns Work?
Automatic electrostatic spray guns generate a high-voltage electrostatic charge that is applied to the paint particles as they exit the nozzle. The workpiece is grounded, creating an attraction force that pulls the charged paint droplets toward the surface. This process results in:
- Wrap-around effect: Paint coats hidden or recessed areas better than conventional spraying.
- Reduced overspray: More paint lands on the target, minimizing waste.
- Improved finish: Smaller, more uniform droplets create smoother surfaces.

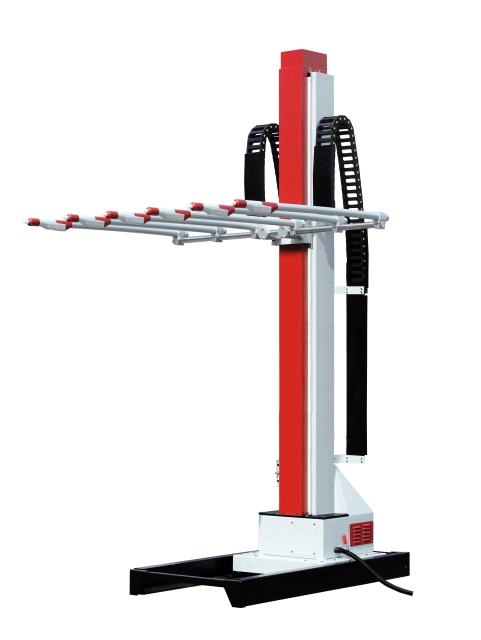

The guns are mounted on robotic arms or automated applicators and controlled by programmable logic controllers (PLCs) that adjust spray parameters in real-time based on feedback sensors, ensuring precision and consistency.
Advantages of Automatic Electrostatic Spray Guns
1. Superior Finish Quality and Consistency
Automatic electrostatic guns deliver a uniform, high-quality finish that is difficult to achieve manually. The electrostatic charge ensures paint particles are evenly distributed, reducing runs, sags, and uneven coverage.
2. High Transfer Efficiency and Material Savings
Transfer efficiency can reach up to 95%, significantly reducing paint consumption and volatile organic compounds (VOCs) emissions. Less overspray means less cleanup and lower environmental impact.
3. Increased Production Speed and Throughput
Automated systems operate continuously at high speeds without fatigue, boosting throughput and reducing cycle times. This efficiency is critical in high-volume manufacturing such as automotive or appliance production.
4. Enhanced Worker Safety
By automating the spraying process, workers are removed from direct exposure to hazardous solvents and fumes, improving occupational health and safety.
5. Integration with Industry 4.0 and Robotics
Automatic electrostatic guns can be integrated into smart manufacturing systems, allowing real-time monitoring, adaptive spraying based on part geometry, and seamless workflow automation.
Advantages of Manual Spray Guns
1. Flexibility and Control
Manual guns allow operators to adapt quickly to complex shapes, small batches, or touch-up jobs where automation might be impractical or too costly.
2. Lower Initial Investment
Manual spray guns and associated equipment have a lower upfront cost, making them suitable for smaller operations or those with limited budgets.
3. Simplicity and Ease of Use
Manual systems require less technical infrastructure and are easier to set up for diverse coating applications.
Challenges and Considerations
Automatic Electrostatic Spray Guns
- Higher Capital Cost: Initial investment in automated electrostatic systems can be significant, including robotic arms, controllers, and safety enclosures.
- Complex Setup and Maintenance: Requires skilled technicians for programming, maintenance, and troubleshooting.
- Faraday Cage Effect: Electrostatic spray may struggle to coat recessed or shadowed areas due to charge distribution, sometimes necessitating hybrid approaches with manual guns.
- Material Limitations: Non-conductive substrates (e.g., plastics) may require conductive primers to optimize electrostatic effects.
Manual Spray Guns
- Operator Variability: Quality depends heavily on operator skill, leading to inconsistent finishes.
- Lower Transfer Efficiency: More paint waste and higher VOC emissions.
- Slower Production: Manual spraying is labor-intensive and less suited for large-scale, high-speed production.
Selecting the Right Spray Gun for Your Production Line
Assess Your Production Volume and Consistency Needs
- For high-volume, repetitive production, automatic electrostatic guns offer unmatched efficiency and finish quality.
- For low-volume, custom, or complex jobs, manual guns provide flexibility and lower cost.
Consider Your Budget and ROI Expectations
- Automatic systems require higher upfront investment but often yield faster returns through material savings and increased throughput.
- Manual guns are more affordable initially but may incur higher operational costs over time.
Evaluate Material and Substrate Compatibility
- Electrostatic guns excel with conductive substrates and solvent-based paints.
- Manual guns can handle a wider variety of materials without special primers or equipment.
Factor in Safety and Environmental Regulations
- Automated electrostatic spraying reduces worker exposure to hazardous chemicals and lowers VOC emissions, aiding compliance with environmental standards.
Practical Tips for Implementation
For Automatic Electrostatic Spray Guns
- Invest in operator training and skilled maintenance personnel.
- Use sensors and vision systems to optimize spray patterns and adapt to part variations.
- Regularly calibrate and maintain equipment to sustain high transfer efficiency.
- Combine with conventional spraying in areas affected by the Faraday cage effect.
For Manual Spray Guns
- Train operators thoroughly to improve consistency.
- Use HVLP guns to reduce overspray and improve transfer efficiency.
- Implement strict safety protocols to protect workers from fumes and solvents.
- Schedule regular equipment maintenance to ensure optimal performance.
Conclusion
Choosing between automatic electrostatic spray guns and manual spray guns depends on your production line's specific needs, budget, and quality requirements. Automatic electrostatic guns deliver superior finish quality, higher transfer efficiency, faster throughput, and enhanced safety, making them ideal for large-scale, high-quality industrial finishing. Manual spray guns offer flexibility, lower initial costs, and ease of use, better suited for smaller or varied production runs.
For manufacturers aiming to optimize efficiency, reduce waste, and improve product quality, investing in automatic electrostatic spray technology is often the better long-term choice. However, manual spray guns remain valuable tools for specialized applications where adaptability and cost control are priorities.
Frequently Asked Questions (FAQs)
1. Can electrostatic spray guns be used on plastic parts?
Yes, but often a conductive primer is needed to enhance the electrostatic effect since plastics are non-conductive.
2. What is the Faraday cage effect in electrostatic spraying?
It is a phenomenon where charged paint particles accumulate on edges and corners, making it difficult to coat recessed areas evenly.
3. How much paint can I save by switching to electrostatic spraying?
Electrostatic guns can achieve up to 95% transfer efficiency, significantly reducing paint waste compared to manual spraying.
4. Are automatic electrostatic spray guns suitable for waterborne paints?
Yes, but they may require additional equipment such as isolation systems or external charging applicators for optimal performance.
5. How do automatic spray guns improve worker safety?
They remove operators from direct exposure to hazardous paint fumes and solvents by automating the spraying process.
