Manual Electrostatic Spray Gun

Building on our 38-year expertise in innovating spraying equipment, our Hong Kong-based company proudly introduces the Manual Electrostatic Spray Gun as an essential solution for precision coating applications worldwide. This article provides a comprehensive overview of the Manual Electrostatic Spray Gun from the manufacturer's standpoint, delving into its working principles, quality inspection standards, technological advancements, pricing factors, and user demographics. Throughout this detailed discussion, the keyword Manual Electrostatic Spray Gun will be used to emphasize its importance and relevance.

Our Manual Electrostatic Spray Gun

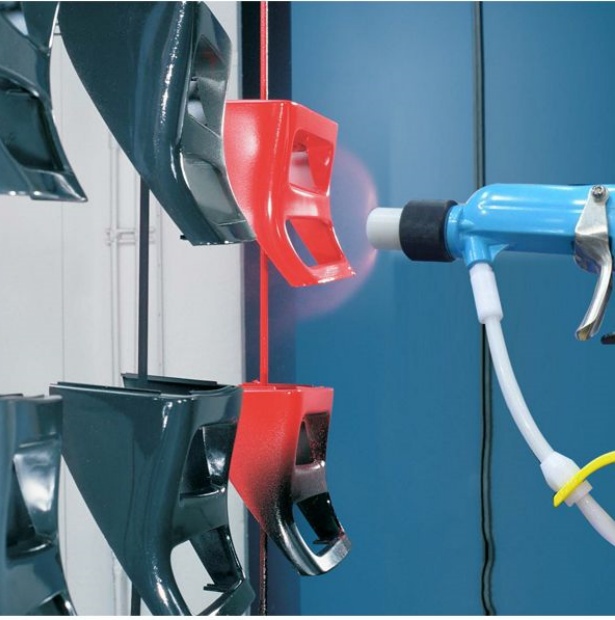

The Manual Electrostatic Spray Gun is a handheld device designed to apply coatings such as paints or powders by electrically charging the coating material and atomizing it into fine particles. This electrostatic charge causes the particles to be attracted to the grounded workpiece, resulting in superior coverage, reduced overspray, and improved material efficiency compared to conventional spray guns.

Unlike automatic or robotic spray guns, the manual variant allows operators to control the spray direction and distance directly, making it ideal for detailed work, small batches, touch-ups, or applications where flexibility is essential. Our Manual Electrostatic Spray Gun is engineered with ergonomic designs, durable materials, and advanced electrostatic technology to deliver consistent, high-quality finishes in various industrial environments.

Automatic Electrostatic Spray Gun and Control Unit

Ramseier Koatings S600 series electrostatic powder spray guns and control systems are based on new digital electronics and the third generation of total energy TCC (Total Charge Control) electrostatic technology, making the S600 spray gun one of the most operator-friendly and reliable spray guns.

System Control Unit

The operator can easily and quickly adjust the various gas and electrical values (such as charging voltage or current, etc.) of the GCU spray gun control unit in the system through the SCU-S600. It is highly user-friendly and improves the production efficiency of the entire powder spraying equipment.
Central quick and easy control (up to 36 sets of spray guns)

Manual Electrostatic Spray Gun and Control Unit View More

Quality Inspection Standards for the Manual Electrostatic Spray Gun

Ensuring the highest quality of our Manual Electrostatic Spray Gun is paramount. Our manufacturing and quality control processes adhere to stringent standards to guarantee performance, safety, and durability:

Electrical Safety Testing

Each gun undergoes rigorous testing to verify insulation resistance, high voltage stability, and proper grounding to prevent electrical hazards.

Spray Pattern Consistency

Spray pattern tests ensure uniform atomization and fan width at specified air pressures, guaranteeing consistent coating application.

Durability and Material

Components are tested for resistance to corrosion, wear, and chemical exposure, ensuring long service life even in harsh industrial environments.

Flow Rate and Pressure

The fluid flow rate and air pressure parameters are calibrated and tested to meet design specifications, ensuring optimal atomization and coating thickness.

Leakage and Seal Integrity

The gun is inspected for any fluid or air leaks, with seals and fittings tested under pressure to maintain system integrity.

Industry Standards

Our Manual Electrostatic Spray Guns comply with international standards such as ISO, CE, and relevant hazardous location certifications, ensuring suitability for professional use worldwide.

Performance Under Load

The guns are tested with various coating materials to confirm consistent electrostatic charging and spray quality under real-world conditions.

Rigorous Quality Checks

These rigorous quality checks ensure that every Manual Electrostatic Spray Gun leaving our production line meets the highest expectations of reliability and performance.

How Does the Manual Electrostatic Spray Gun Work?

The working principle of the Manual Electrostatic Spray Gun is based on the combination of air atomization and electrostatic charging. Here is a detailed breakdown of its operation:
Air Atomization: Compressed air is supplied to the gun, which atomizes the fluid coating material into fine droplets. This process ensures a uniform spray pattern and optimal particle size for coating.
Electrostatic Charging: The gun contains an internal power supply or is connected to an electrostatic controller that converts low voltage into high voltage. This high voltage is applied to an electrode located near the gun’s nozzle.
Charging the Paint Particles: As the atomized paint passes the electrode, it becomes negatively charged. The workpiece, grounded to the system, acts as a positive electrode.
Attraction and Wrap-Around Effect: The charged paint particles are attracted to the grounded workpiece, wrapping around edges and recesses to provide an even coating. This wrap-around effect minimizes paint waste and ensures coverage on complex geometries.
Control and Safety: Operators can adjust air pressure, paint flow, and electrostatic voltage to optimize the spray for different materials and surfaces. Safety features such as grounding cables and arc detection prevent electrical hazards during use.

Inquire Now

Innovations and Development in Manual Electrostatic Spray Gun Technology

The Manual Electrostatic Spray Gun has evolved significantly over the decades, driven by advances in materials science, electronics, and ergonomic design. Our company continuously invests in research and development to push the boundaries of this technology:
High Voltage and High Current Technology: Recent innovations combine both high voltage and high current electrostatic charging, enhancing paint particle charge density and improving transfer efficiency by up to 20% compared to older designs.Through continuous innovation, our Manual Electrostatic Spray Gun remains at the cutting edge of coating technology, delivering superior results while enhancing operator comfort and safety.

Lightweight and Ergonomic Designs

Modern guns are crafted with lightweight composite materials and ergonomic grips to reduce operator fatigue during prolonged use.
Smart Control Systems

Integration of digital controllers and feedback systems allows real-time monitoring of voltage, current, and spray parameters, enabling operators to maintain optimal settings and improve consistency.
Low Pressure Atomization

New air cap designs facilitate low-pressure spraying, reducing paint bounce-back and improving finish quality, especially on delicate surfaces.
Improved Electrode Materials

Use of corrosion-resistant and wear-resistant electrode tips extends service life and maintains stable electrostatic performance.
Enhanced Safety Features

Incorporation of arc detection and automatic electrostatic shutoff mechanisms prevents electrical hazards and improves workplace safety.
Modular Components

Guns are designed with easily replaceable parts, simplifying maintenance and reducing downtime.

Factors Influencing the Price

The price of a Manual Electrostatic Spray Gun is influenced by several key factors that reflect its quality, performance, and suitability for specific applications:
Technology Level: Advanced guns with high voltage/high current capability, smart controls, and safety features command higher prices than basic models.
Material Quality: Use of premium materials such as corrosion-resistant alloys, high-grade polymers, and precision-machined components increases manufacturing costs.
Design Complexity: Ergonomic designs, modular components, and specialized nozzles tailored to specific coatings or applications add to the cost.
Brand Reputation and Warranty: Established manufacturers offering comprehensive warranties and after-sales support typically price their products higher due to reliability assurances.
Certification and Compliance: Guns certified for use in hazardous environments or meeting stringent international standards involve additional testing and documentation costs.
Production Volume: Custom or low-volume orders may incur higher unit costs compared to mass-produced models.
Included Accessories: Packages including electrostatic controllers, grounding cables, and maintenance kits affect the overall price.
Understanding these factors helps customers select the right Manual Electrostatic Spray Gun balancing performance needs and budget constraints.

Inquire Now

FAQs About Manual Electrostatic Spray Guns

Q1: What distinguishes a Manual Electrostatic Spray Gun from automatic versions?

More+

A1: The manual gun is handheld and operated directly by a person, offering flexibility and control for detailed or small-scale work, whereas automatic guns are integrated into robotic or conveyor systems for high-volume, repetitive coating tasks.

Q2: How important is grounding when using a Manual Electrostatic Spray Gun?

More+

A2: Grounding is critical. The workpiece must be properly grounded to create the electrostatic field that attracts charged paint particles. Incomplete grounding can lead to poor coating quality and safety hazards.

Q3: Can the Manual Electrostatic Spray Gun be used with all types of paints?

More+

A3: While it is compatible with many solvent-based and waterborne paints, the gun’s performance depends on paint resistivity and viscosity. Adjustments or specific nozzles may be needed for optimal results.

Q4: How often should the Manual Electrostatic Spray Gun be maintained?

More+

A4: Routine cleaning after each use, regular inspection of seals and electrodes, and scheduled replacement of wear parts are recommended to maintain performance and safety.

Q5: What safety precautions should operators follow when using the Manual Electrostatic Spray Gun?

More+

A5: Operators should always ensure proper grounding, avoid spraying near flammable materials, wear appropriate protective gear, and follow manufacturer guidelines to prevent electrical shocks and fire hazards.

Q6: Why might a customer choose a customized Manual Electrostatic Spray Gun?

More+

A6: Customization allows adaptation to specific coating materials, workpiece shapes, and production environments, enhancing efficiency, finish quality, and operator comfort.

User Groups of Manual Electrostatic Spray Guns

The Manual Electrostatic Spray Gun serves a diverse range of users across various industries, each benefiting from its unique advantages:
Automotive Repair and Refinishing Shops: Professionals rely on manual guns for touch-ups, small batch painting, and precision coating of automotive parts.
Industrial Manufacturers: Factories producing machinery, appliances, and metal furniture use manual electrostatic guns for detailed coating work and quality control.
Woodworking and Furniture Makers: Manual guns provide smooth finishes on wood surfaces, allowing artisans to achieve consistent results.
Aerospace and Defense: High-quality coatings on aircraft components often require manual electrostatic spraying for complex geometries and strict standards.
Agricultural Equipment Manufacturers: Durable coatings on farm machinery benefit from the wrap-around effect of electrostatic spraying.

Small-Scale Powder Coating Shops

Manual guns offer flexibility for coating varied parts without the need for full automation.
Maintenance and Repair Teams

On-site maintenance crews use manual electrostatic guns to apply protective coatings for corrosion resistance and equipment longevity.
Research and Development Labs

Manual guns facilitate testing of new coatings and application methods in controlled environments.
These user groups appreciate the Manual Electrostatic Spray Gun for its balance of precision, efficiency, and adaptability, making it an indispensable tool in their coating processes.

Welcome to Contact Us for Your Needs!

Our Manual Electrostatic Spray Gun embodies decades of expertise, combining advanced electrostatic technology with ergonomic design and robust quality standards. Whether for automotive refinishing, industrial manufacturing, or specialty coatings, it delivers superior performance, cost savings, and environmental benefits. We invite you to explore how our manual electrostatic spray solutions can elevate your coating operations to new heights of efficiency and quality.
